Rear

REMOVAL





1. With vehicle in neutral, position vehicle on hoist.

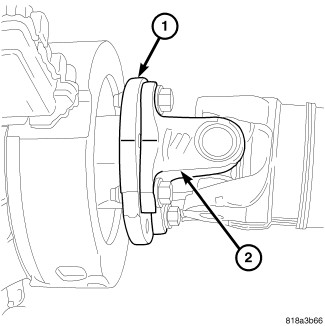

2. Mark a reference line across axle flange (1) and propeller shaft flange (2) for installation.

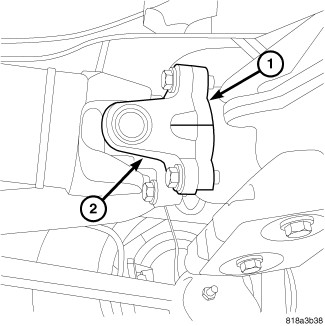

3. Mark a reference line across transmission/transfer case flange (1) and propeller shaft flange (2) for installation.





4. Remove propeller shaft flange (1) bolts from axle flange (2).





5. Remove propeller shaft flange (1) bolts from transmission/transfer case flange (2).
6. Remove propeller shaft.
