Rear






INSTALLATION






NOTE: Clean all propeller shaft bolts and apply Mopar(R) Lock AND Seal Adhesive or equivalent to the threads before installation.

1. Install propeller shaft.

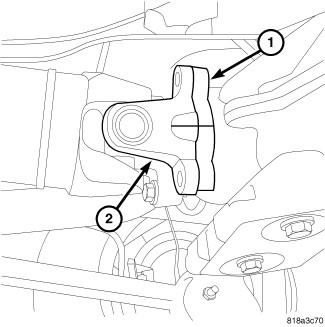

2. Align reference mark on axle flange (1) with propeller shaft flange (2).

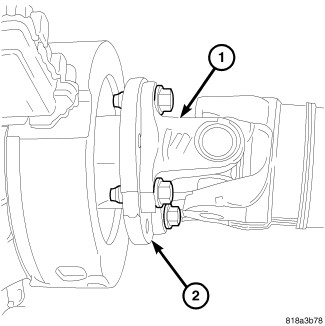

3. Align reference mark on transmission/transfer case flange (1) with propeller shaft flange (2).

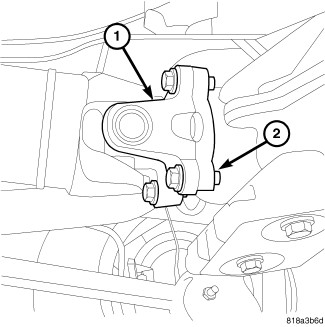

4. Install propeller shaft bolts (2) in axle flange (1) and tighten to 108 Nm (80 ft. lbs.).

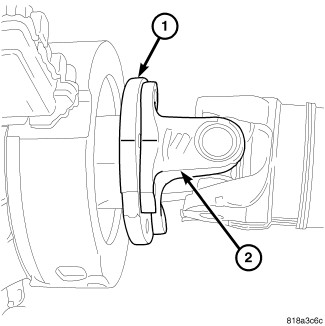

5. Install propeller shaft bolts in transmission/transfer case flange (2) and tighten to 108 Nm (80 ft. lbs.).
