Removal

REMOVAL





1. Remove right half shaft from vehicle.
2. Remove O-ring (1) and snap ring (2) and from axle shaft (3).

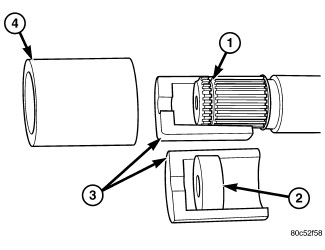

3. Assemble Remover 8420A blocks (3) with hammer threads (2) on snap ring groove (1) on right axle shaft. Slide collar (4) over blocks and thread Slide Hammer C-3752.





4. Remover right axle shaft (1) with Remover 8420A (2) and Slide Hammer C-3752.
5. Slide axle shaft out of the axle tube.
