Installation

INSTALLATION





1. Lubricate bearing bore and seal lip with gear lubricant. Insert axle shaft through seal, bearing and engage it into side gear splines.

NOTE: Use care to prevent shaft splines from damaging axle shaft seal.

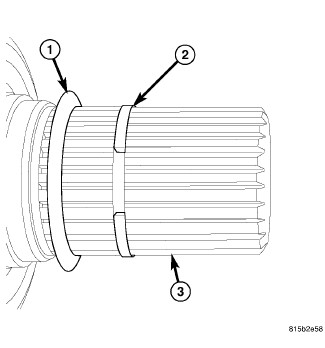

2. Install O-ring (1) and snap ring (2) on axle shaft (3).
3. Push the axle shaft until the axle shaft snap-ring passes through the side gear.
4. Install right half shaft.
5. Check differential fluid level.
