Differential Carrier Bearings - Removal






REMOVAL





1. Remove differential case from axle.

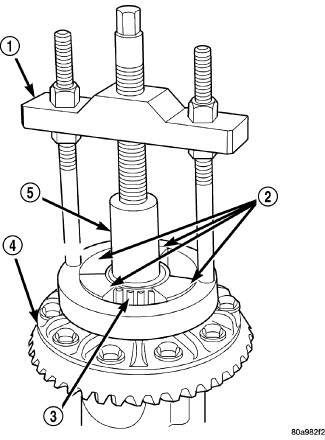

2. Remove differential bearings (3) from the case with Puller/Press C-293-PA (1) and Adapters C-293-48 (2) and Plug 8926-2 (5).
