Rear

REAR WHEEL STUD

CAUTION: Do not use a hammer to remove wheel studs.

1. Raise and support vehicle.
2. Remove wheel and tire assembly.









3. Remove brake caliper and rotor,Brake Rotor - Removal.

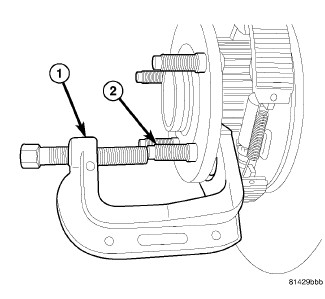

4. Remove stud (2) from hub with Remover 8677 (1).










5. Remove the stud (1) from between the hub/bearing and brake shoes (2)
