Rear Suspension Jounce Bumper - Installation






INSTALLATION

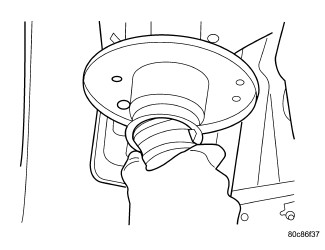

1. Install the jounce bumper into the mount by twisting the bumper into place.
2. Install the coil spring Rear Suspension Coil Spring(s) - Installation.
3. Install the shock Installation.
