Rear Suspension Coil Spring(s) - Installation

INSTALLATION

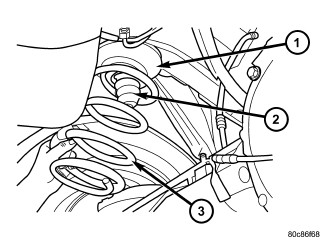

1. Install the upper isolator (1).
2. Install the lower isolator.

CAUTION: Ensure the spring is positioned on the lower isolator.

3. Pull down on the axle and position the coil spring (3) in the lower isolator.
4. Raise the axle with the hydraulic jack.
5. Install the shock absorber to the axle bracket and tighten to 115 Nm (85 ft. lbs.).
6. Remove the supports and lower the vehicle.
