Rear Suspension Stabilizer Bar Link - Installation

INSTALLATION

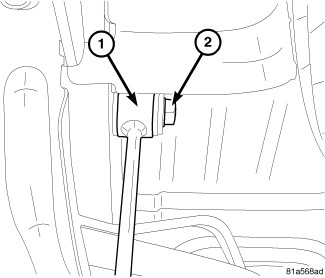

1. Install the upper bolt (2) for the stabilizer link (1) to the frame and tighten to 102 Nm (75 ft. lbs.).

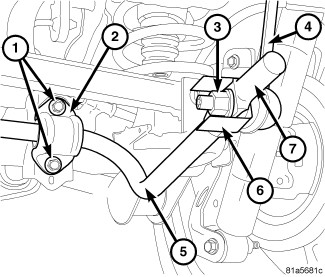

2. Install the stabilizer link (4) to the stabilizer bar (5).
3. Install the nut (3) and tighten to 115 Nm (85 ft. lbs.). with full vehicle weight.
4. Install the spare tire right side only.
5. Remove the jack and lower the vehicle.
