Rear Suspension Mass Damper - Installation






INSTALLATION

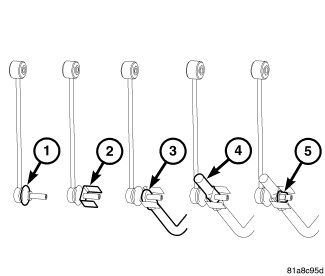

1. Install the retainer (2) to the stabilizer link (1).
2. Install the stabilizer bar (3) over the retainer (2).
3. Install the mass damper (4) to the stabilizer link stud.
4. Install the nut (5) and tighten to 115 Nm (85 ft. lbs.). with full vehicle weight.
5. Remove the jack and lower the vehicle.
