Steering Gear - Installation

4WD - 2.8L or 3.7L





1. Transfer the tie rod ends to the new steering gear (if needed).
2. Install the steering gear (1) to the vehicle.
3. Install the gear mounting bolts (2) to the front cradle and tighten to 176 Nm (130 ft.lbs.).





4. Install the power steering lines (1, 2) to the gear (3) and tighten the tube nuts to 27 Nm (20 ft.lbs.).
5. Install the oil filter trough and filter.
6. Install the axle mounting bracket.
7. Install the left lower control arm into position and install the cam/bolt.
8. Install the tie rod end to the knuckle and tighten the nuts to 41 Nm (30 ft.lbs.), plus an additional 90° turn.
9. Install the tire and wheel assembly Removal and Replacement.
10. Remove the supports and lower the vehicle.





11. Install the lower coupler pinch bolt (1), slide the coupler on to the gear and tighten the pinch bolt to 53 Nm (39 ft.lbs.).

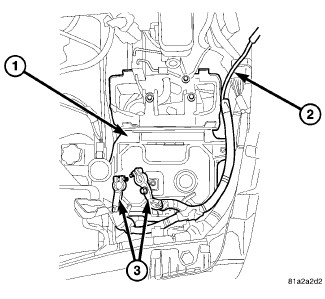

12. Install the battery tray (1) Battery Tray - Installation.
13. Install the battery Battery - Installation.
14. Reinstall the power center back into place.
15. Reconnect the battery cables (3).
16. Unlock the steering wheel.
17. Fill the power steering fluid Power Steering System Bleeding.
18. Perform a wheel alignment Service and Repair.
