A/C Pressure Transducer - Installation

INSTALLATION

NOTE: Use only the specified O-ring as it is made of special material for R-134a. Use only refrigerant oil of the type required for the A/C compressor.






NOTE: LHD model shown. RHD model similar.

1. Lubricate a new rubber O-ring seal with clean refrigerant oil and install it onto the A/C pressure transducer fitting.

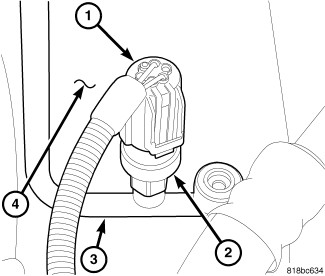

2. Install the A/C pressure transducer (2) onto the A/C liquid line (3) near the dash panel (4). Hand-tightened the transducer securely.
3. Connect the wire harness connector (1) to the A/C pressure transducer.
4. Reconnect the negative battery cable.
