Second Row Center Anchor and Left Outboard

SECOND ROW CENTER ANCHOR AND LEFT OUTBOARD

WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar (R) Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.






NOTE: The anchor plates for the left outboard second row seat belt buckle and the second row center seat belt anchor are secured to each other by a soft metal grommet as an assembly aid during the manufacturing process and, once removed, the grommet does not require reinstallation.

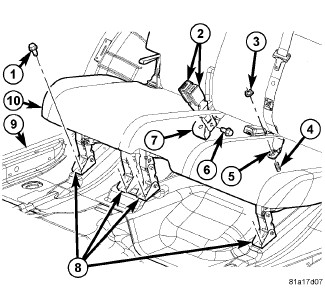

1. Position the second row left outboard buckle anchor plate (5) between the seat back and the seat cushion (10).
2. Lower the second row center seat belt and left outboard seat belt buckle anchors over the stud (4) on the rear floor panel (9).
3. Install and tighten the nut (3) that secures the anchors to the stud on the rear floor panel. Tighten the nut to 62.5 Nm (46 ft. lbs.).
4. Lower the front edge of the seat cushions downward and align the seat cushion legs (8) to the holes in the rear floor panel.
5. Install and tighten the four screws (1) that secure the legs to the floor panel. Tighten the screws to 54 Nm (40 ft. lbs.).
