Kneeblocker - Installation

INSTALLATION





1. Before proceeding with the following repair procedure, review all warnings and cautions. Service Precautions
2. Position the kneeblocker hinges (3) onto the instrument panel receivers (2) and slide the hinges (1) into place.

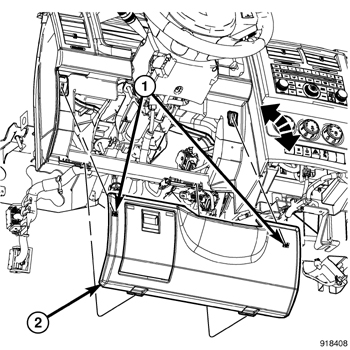

3. Position the top of the kneeblocker (2) up against the instrument panel and seat the clips (1) fully.
