Front Lamp Unit Bulb - Removal

BULB - HEADLAMP - DOMESTIC

CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.





1. Disconnect and isolate the battery negative cable.

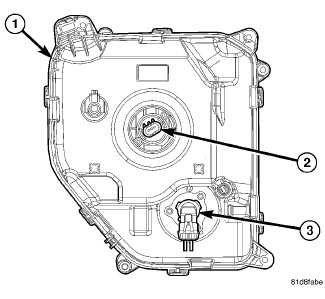

2. Disconnect the wire harness connector from the connector receptacle integral to the headlamp bulb (2) on the back of the front lamp unit housing (1) located on the back of the front end module carrier.
3. Firmly grasp the bulb base and rotate it counterclockwise about 30 degrees to unlock it.
4. Pull the bulb and base straight out from the keyed opening in the reflector.
