Compass And Mini-Trip Computer Module - Installation

INSTALLATION

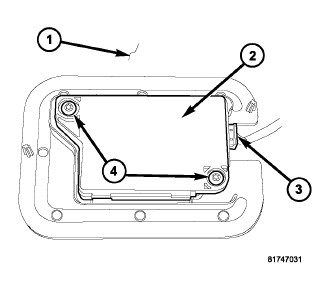

1. Position the Remote Compass Module (RCM) (2) into the bracket on the upper side of the headliner (1).
2. Install the RCM retaining screws (4).
3. Connect the electrical connector (3).
4. Install the headliner assembly, Headliner - Installation.
5. Connect the battery negative cable.
6. Perform the Compass Variance Adjustment, Adjustments.
7. Perform the Manual Compass Calibration, Adjustments.
8. Verify proper compass operation.
