Compass: Description and Operation

DESCRIPTION

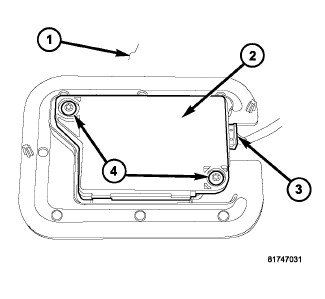

The Remote Compass Module (RCM) (2) is a separate stand alone module mounted to the top side of the headliner (1). The module is located at the rear left of the vehicle. The RCM can be accessed by removing both quarter trim panels and the headliner molding, then carefully lowering the rear of the headliner at the D-pillar area.

If the compass position sensor (Remote Compass Module) is inoperative and requires replacement, Compass And Mini-Trip Computer Module - Removal for the appropriate procedure.
