Zexel A/C Clutch

ZEXEL A/C CLUTCH

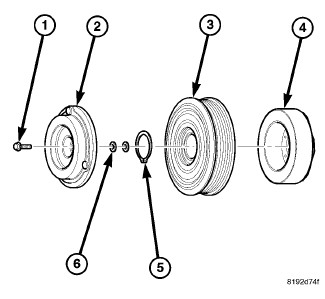

The A/C system on models equipped with the 2.8L engine use a Zexel DKS-17DS A/C compressor. The clutch assembly for this A/C compressor consists of a stationary electromagnetic coil (4), bearing and pulley assembly (3), shims (6) and a clutch plate (2) that is splined to the compressor shaft and secured by a bolt (1). These components provide the means to engage and disengage the A/C compressor from the engine accessory drive belt.

The A/C clutch coil is pressed onto the front of this A/C compressor and cannot be serviced separately from the compressor. The A/C clutch bearing and pulley assembly is retained to the front of the compressor by a snap ring (5) and can be serviced separately.
