Intake Manifold: Description and Operation

DESCRIPTION





The intake manifold is made of a composite material and features 300 mm (11.811 in.) long runners which maximizes low end torque.

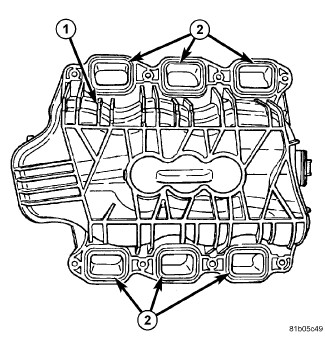

The intake manifold uses single plane sealing which consist of six individual press in place port gaskets (2) to prevent leaks. The throttle body attaches directly to the intake manifold.
