Accessory Drive Belt Tensioner - Removal






3.7L ENGINE










1. Remove accessory drive belt.

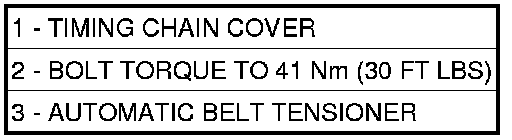

2. Remove tensioner assembly (3) from engine front cover.

WARNING: Because of high spring tension, do not attempt to disassemble automatic tensioner. Unit is serviced as an assembly (except for pulley on tensioner).

3. Remove pulley bolt. Remove pulley from tensioner.
