Vibration Damper - Removal

REMOVAL










1. Disconnect negative cable from battery.
2. Remove accessory drive belt Serpentine Accessory Drive Belt - Removal.

NOTE: Transmission cooler line snaps into shroud lower right hand corner.

3. Remove crankshaft damper bolt.

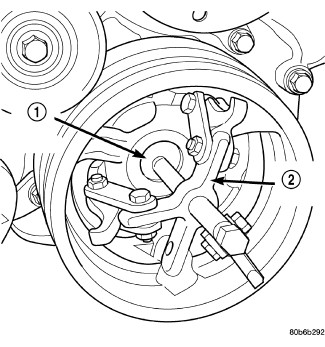

4. Remove damper using Crankshaft Insert 8513A (1) and Three Jaw Puller 1026(2).
