Non-Pressure System

NON-PRESSURE SYSTEM





1. Disconnect negative battery cable.

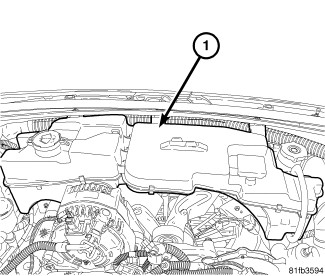

2. Disconnect two washer pump hoses, coolant recovery hose and washer pump electrical connector from the combination coolant recovery/washer fluid reservoir assembly (1).
3. Remove 5 screws, 3 on top, 2 on the outside lower edges of the reservoir (1 each side).
4. Remove the combination coolant recovery/washer fluid reservoir assembly (1).
