Pressure System

PRESSURE SYSTEM

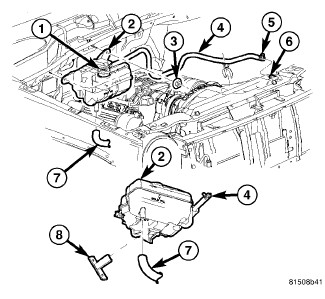

1. Position pressure bottle on mounting bracket.
2. Install mounting nuts. Tighten nuts to 8.5 Nm (75 in. lbs.).
3. Install lower hose at coolant bottle.
4. Install radiator to coolant bottle hose at coolant bottle.
5. Fill cooling system Service and Repair.
