Parking Brake Lever - Removal

REMOVAL





1. Remove the center floor console, Floor Console - Removal.
2. Lock out the parking brakesService and Repair.
3. Disengage the front cables from the equalizer.

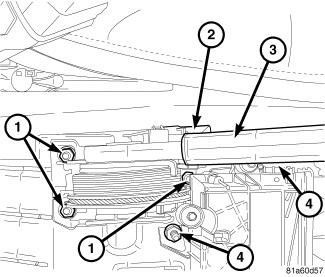

4. Disconnect the parking brake lamp switch wire (2).
5. Remove the occupant restraint controller mounting nuts (4) Occupant Restraint Controller - Removal
6. Remove the parking brake lever assembly mounting nuts (1).
7. Remove the lever assembly (3).
