Rear
REAR
1. Raise and support the vehicle
2. Remove the tire and wheel assembly.

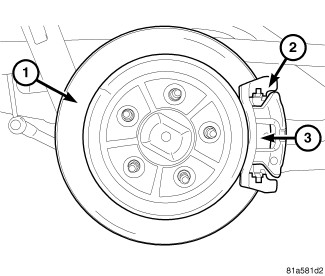

3. Remove the disc brake caliper adapter (2) and pads (3), Disc Brake Caliper - Removal.
4. Remove the retaining clips and rotor assembly (1).
REAR
1. Raise and support the vehicle
2. Remove the tire and wheel assembly.
3. Remove the disc brake caliper adapter (2) and pads (3), Disc Brake Caliper - Removal.
4. Remove the retaining clips and rotor assembly (1).
