Front

FRONT





1. Raise and support the vehicle.
2. Remove the tire and wheel assembly.

CAUTION: Never allow the disc brake caliper to hang from the brake hose. Damage to the brake hose will result. Provide a suitable support to hang the caliper securely.

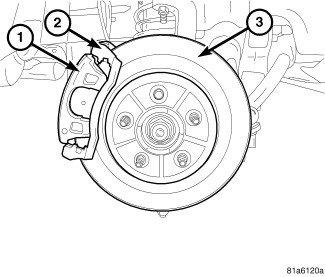

3. Remove the caliper adapter (2). Disc Brake Caliper Adapter - Removal.
4. Remove the disc brake rotor (3).
