Front

REMOVAL






WARNING: Before proceeding with the following repair procedure, review all warnings and cautions Service Precautions .

1. Remove the side shields. Seat Cushion Side Shields - Removal

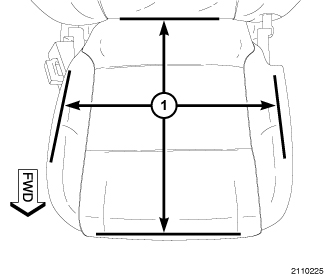

2. Release the J-straps (1) securing the seat cushion assembly to the seat cushion frame.

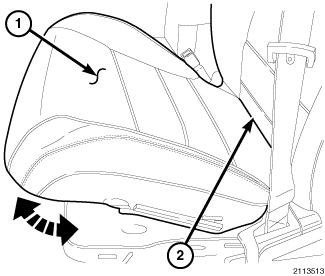

3. Lift the seat cushion assembly (1) up in the front and disconnect the electrical connectors, if equipped.
4. Remove the seat cushion assembly.

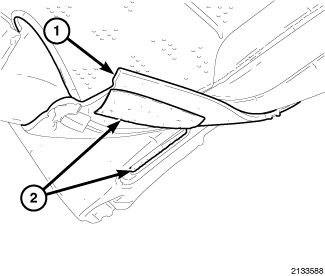

5. Release the hook and loop strips (2) and fold the cover (1) up to expose the hog ring fasteners.

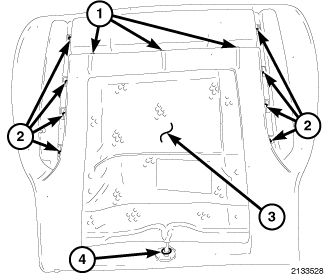

6. Cut and remove all hog rings (1 and 2).
7. Remove the seat cover from the seat cushion.
8. Remove the seat cushion heating element (3), if equipped.Heater Pad - Removal
