Rear

INSTALLATION

60/40 Seat Back - 40

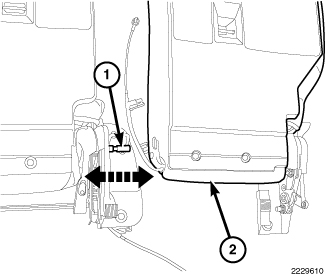

1. Slide the 40% seat back assembly (2) onto the inner seat bracket pivot shaft (1).
2. Install the 40% seat cushion and cover Seat Cushion Cover - Installation.

60/40 Seat Back - 60

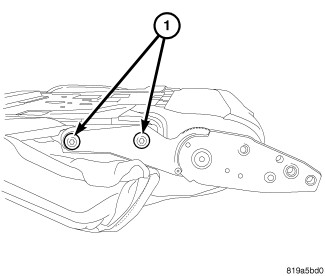

1. Install the seat back assembly onto the seat back hinges and install the bolts (1).
2. Tighten the bolts to 47.5 Nm (35 ft. lbs.).





3. Secure the seat back cover clips (2 and 4).

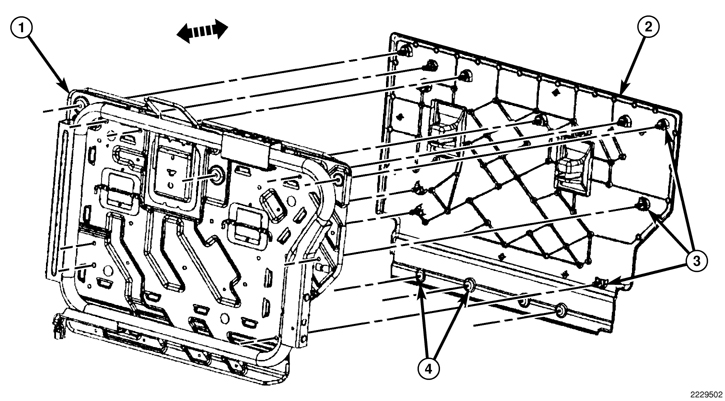

4. Position the seat back panel (2) back into place and fully seat the eight push pin fasteners (3).
5. Install the five lower push pins (4).
