Shifter Bezel - Removal

REMOVAL

1. If equipped with a manual transmission and built before February 11, 2008, using a slide-hammer, snap out the shift knob from the lever.

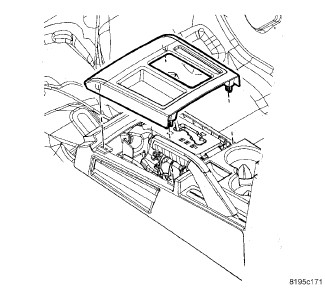

2. Using a trim stick C-4755 or equivalent, pry the shift bezel out of the floor console. If equipped with a manual transmission, the lever boot will come off with the bezel.
3. If equipped, remove electrical connectors attached to shift bezel.

4. If equipped with a manual transmission and built on or after February 11, 2008, using a slide-hammer, snap out the shift knob from the lever.

NOTE: If equipped with a manual transmission and built on or after February 11, 2008, to remove the boot from the console bezel, operate the retaining clips to release the boot frame. Do not attempt using a trim stick on the top surface, that will damage the part.
