Upper

INSTALLATION

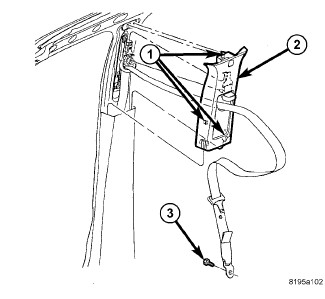

1. Feed the seatbelt webbing through the B-pillar trim (2). Slide the belt adjuster to top position.
2. Install the trim (2) by sliding down and into the B-pillar lower trim.
3. Align the 4-way locator and seat the B-pillar trim (2) to the body.
4. Install the screw and screw cover.
5. Install the seat belt bolt (3) and tighten to 44.5 Nm (33 ft. lbs.).
