Lower

INSTALLATION

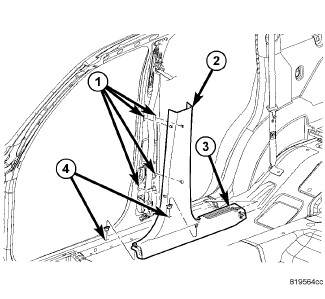

1. Align and install the trim panel clips (3) rearward and into quarter trim panel.
2. Push the trim panel (2) down into the body (4) using hand pressure until all clips are seated.
3. Align and install the trim panel (2) to the body slots (1) on the B-pillar. Snap into place using hand pressure.
