A-Pillar Trim Panel - Installation






INSTALLATION

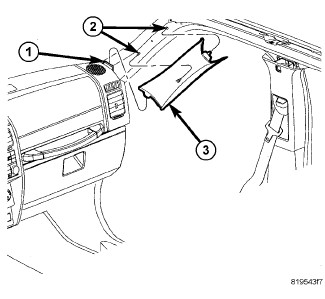

1. Align the A-pillar trim tab on the molding (3) to the top cover slot of the instrument panel (1).
2. Install the top clip on the trim molding.
3. Align the two clips on the molding to the slots (2) on the A-pillar. Snap the A-pillar trim molding (3) into place using hand pressure.
