Header Panel - Installation

INSTALLATION

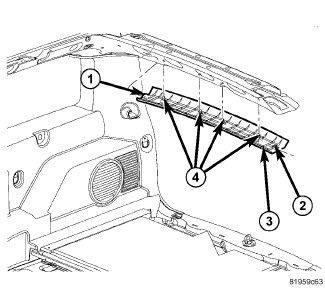

1. Install the headliner molding (3) to the body by sliding the tab (1) on the right side into the quarter trim molding.
2. Pull down at the center of the headliner molding (3) only enough to allow the tab (2) to be slide into the other side of the quarter trim molding.
3. Using hand pressure snap the remaining clips (4) into place.
4. Close the lift gate.
