Cowl Trim Panel - Installation

INSTALLATION

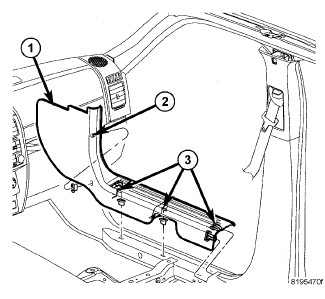

1. Align and install the cowl trim cover (1) by sliding the rear tabs of the cowl trim cover under the B-pillar trim.

CAUTION: When installing the cowl trim cover make sure not to damage the body plugs, around the sill area. If damage occurs to the body plugs, replace with new plugs. Failure to replace a damaged body plug results in a water leak to the floor area of the vehicle.

2. Using hand pressure install the clips (3) into the body and the A-pillar (2).
