Scuff Plate - Removal






REMOVAL





1. Open the lift gate.

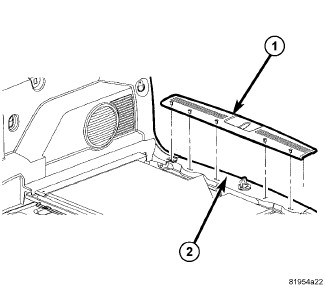

2. Using a trim stick C-4755 or equivalent, release the retaining clips and remove the scuff plate (1) from the body (2).
