Grab Handle - Removal






REMOVAL

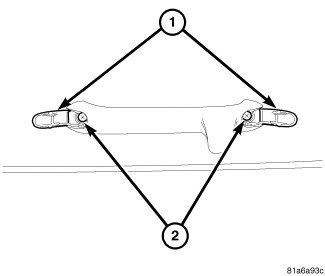

1. Using a small pry tool or equivalent, release the assist handle by prying open the covers (1) at either end.
2. Remove the screws (2) from the assist handle.
