Overhead Console - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

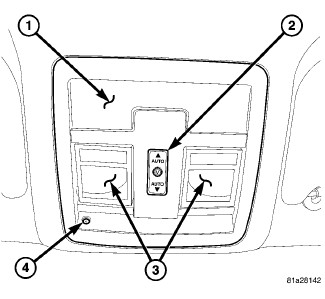

2. Using your fingertips, grasp the sides of the overhead console (1) and pull straight down evenly to disengage the three snap clips from the mounting bracket.





3. Lower the overhead console (1) far enough to access the wire harness connector (2).
4. If equipped, disconnect the courtesy lamps, infrared temperature sensor and power sunroof switch electrical connectors.
5. Remove the overhead console (1) assembly from the vehicle.
