Floor Console Lid Latch - Installation

INSTALLATION






NOTE: Align the lid latch (2) with the reference marks made during removal.

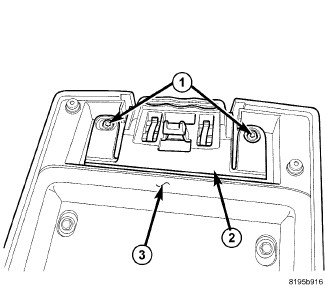

1. Install the two screws (1) attaching the console lid latch (2) to the console lid (3).
2. Check the adjustment of the lid latch (2) and adjust as necessary by loosening the two screws (1) and moving the lid latch (2) right or left as needed until the console lid (3) closes properly.
