Floor Console Lid

REMOVAL

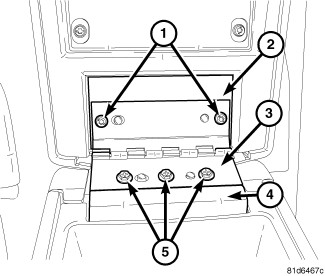

1. Remove the two screws (1) attaching the console lid (2) to the hinge (3).
2. Remove the console lid (2) from the hinge (3).
3. Remove the three screws (5) attaching the hinge (3) to the console (4).
4. Remove the hinge (3) from the console (4).
