Floor Console End Cap

REMOVAL

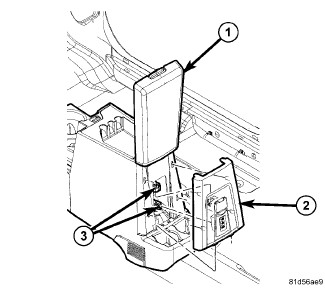

1. Open console lid (1).
2. Using a trim stick C-4755 or equivalent, release the fasteners at the four locations around the floor console end cap (2).
3. Disconnect electrical connectors (3) from end cap (2).
4. Remove end cap (2).
