Transmission

INSTALLATION

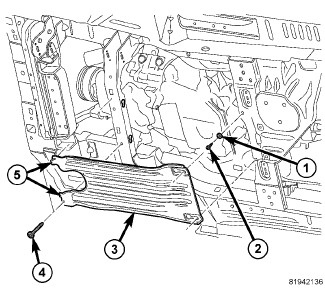

NOTE: Inspect the Nut/Rivets (1) for signs of damage or wear and replace as necessary.

1. If necessary replace the nut/rivets (1).
2. Position the skid plate (3) onto the bolts (2) on the crossmember.
3. Slide the skid plate forward so that the location tabs on the front of the skid plate (5) engage the slots on the engine cradle.
4. Install the two bolts (4) to the front of the skid plate.
5. Tighten all bolts to 27 Nm (20 ft. lbs.).
