Skid Plate - Installation
>>
Transfer Case
Transfer Case
INSTALLATION
1.

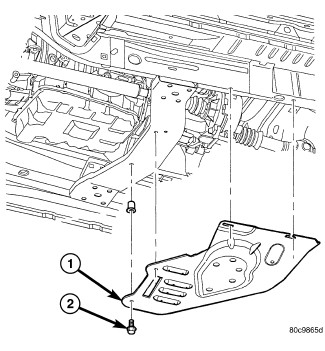

Install the
skid plate
(1) and bolts (2) and tighten to 34 Nm (25 ft. lbs.).
