Liftgate Trim Panel - Removal

REMOVAL

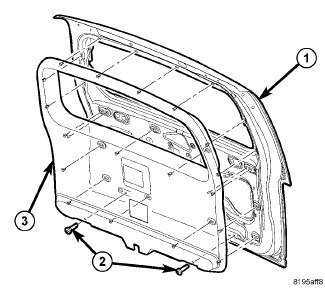

1. Remove two bolts (2) from the lower trim panel (3).
2. Using a trim stick C-4755 or equivalent, release the fasteners at all of the locations around the trim panel (3).
3. Lift the trim panel (3) from the lift gate (1).
