Hood Latch Bracket - Installation

INSTALLATION

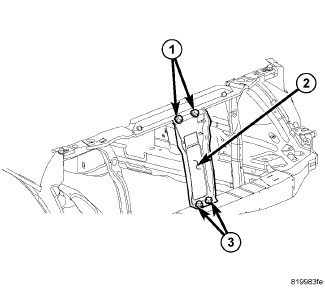

1. Install the latch support (2) to the vehicle.
2. Install the upper bolts (1) and the lower bolts (3) to the latch support (2) and tighten to 8.5 Nm (75 in. lbs.).
3. Install the latch to the latch support, Front Door Latch - Installation.
4. Install the grille, Grille - Installation.
