Rear Door Latch: Adjustments

ADJUSTMENT

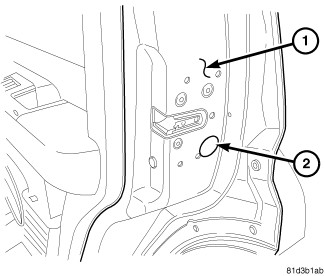

1. Locate the access hole on door (1) and remove tape (2) covering it.
2. Insert a 5/32" hex-wrench through hole and into adjustment screw. Loosen screw.
3. Operate outside handle several times to release any restriction because of mis-alignment.
4. Tighten adjustment screw to 4.5 Nm (40 in. lbs.).
5. Test handle for proper operation.
