Rear Energy Absorber - Installation

INSTALLATION

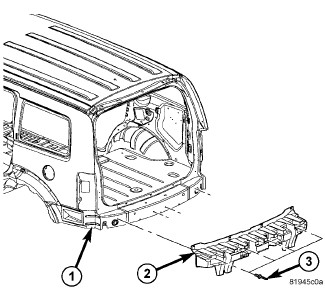

1. Position the rear absorber (2) to the body (1) then use hand pressure on the rear absorber until the plastic clips snap into place securing the rear absorber to the body.
2. Install the four rivets (3) through the rear absorber (2) and into body (1).
3. Install the rear fascia, Rear Bumper Fascia - Installation.
