Rear Bumper Fascia - Installation

INSTALLATION

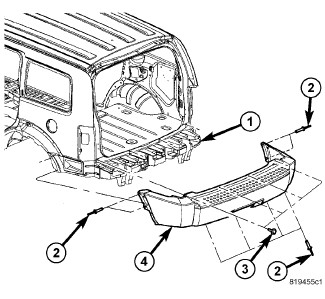

1. Install into position the rear fascia (4) to the rear absorber (1).
2. Install the screws (3) located at the top of the rear fascia (4) and tighten to 8 Nm (70 in. lbs.).
3. Install the six rivets (2) through the rear fascia (4), and the rear absorber (1) to the body.
4. Install both or the rear wheel opening flare moldings, Body Side Molding - Installation.
