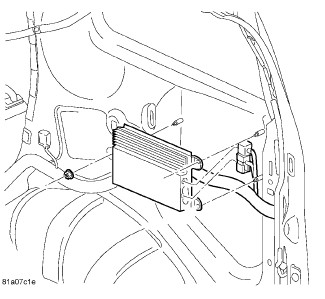

Amplifier - Removal






REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the rear quarter trim panel. Quarter Trim Panel - Removal.
3. Remove the mounting fasteners.
4. Disconnect the electrical connectors and remove the amplifier.
