Amplifier - Installation






INSTALLATION

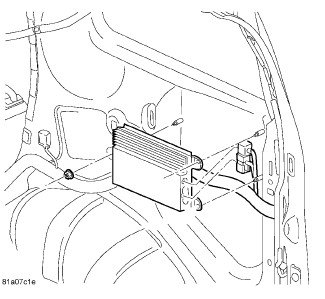

1. Connect the electrical connectors and install the amplifier.
2. Install the amplifier mounting fasteners.
3. Install the rear quarter trim panel. Quarter Trim Panel - Installation.
4. Connect the battery negative cable.
