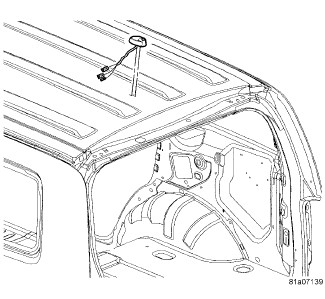

Satellite Antenna - Removal






REMOVAL





1. Disconnect the battery negative cable.
2. Lower the rear section of the headliner to gain access the antenna, ensuring that the headliner does not crease. Headliner - Removal.
3. Remove the mounting fastener.
4. Disconnect the electrical connectors and remove the antenna.
